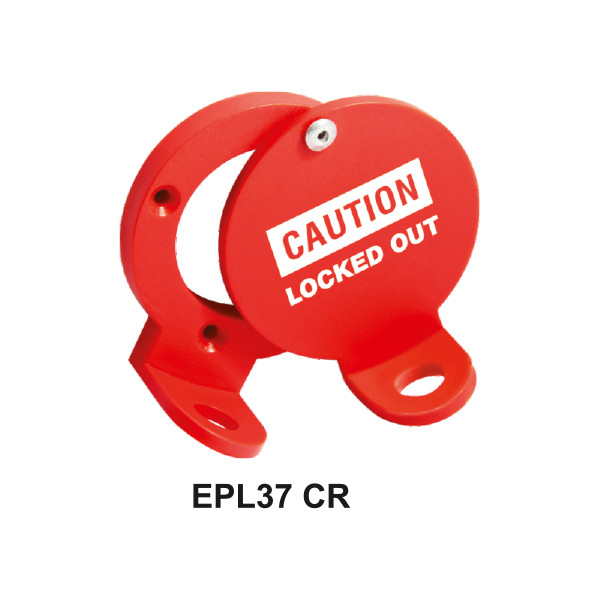

Electrical Panel Hole Lockout Circular Red

Electrical Panel Hole Lockout has a material body made of ABS, attached with rivet. Round Shape Di-Electric Lockout device is used to lock the racking in-out point of air circuit breaker and vacuumed circuit breaker, etc. so that no one could operate the particular device. Also used for locking switches that are recessed inside a plane surface. Easily rotated in any direction ? have three holes on the bottom part for fixing it with the help of screws / rivets. It can also be installed to the surface by using the strong double sided tapes.

Dimension:

Outer Diameter: 46mm

Inner Diameter: 32mm

Lower Cover Circle Side Wall Thickness: 7mm

Overall Thickness: 8mm with Upper Part Thickness: 3mm

Lower Part Thickness: 5mm

Locking Hole Diameter: 1mm
