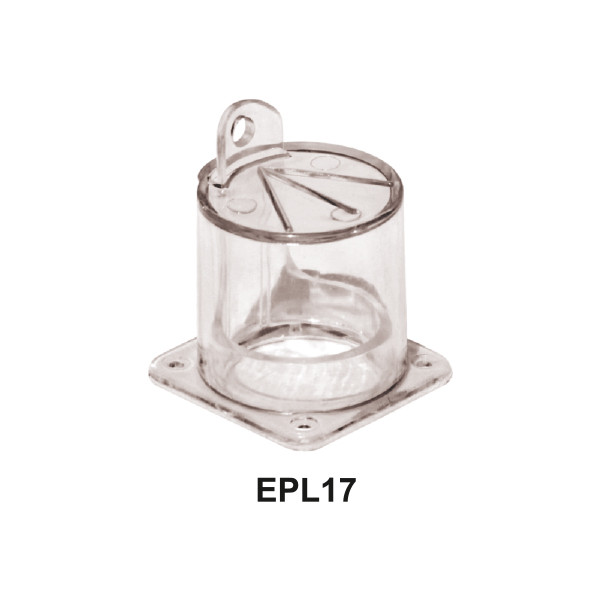

Electrical Panel Lockout Round 45

These LOTO units have been designed to lockout electrical panel buttons and switches with no inbuilt lockout provisions. When in place, the electrical plugs / switches / buttons can be isolated by placing the house unit over the top of base plate - hence preventing the access to the isolated switch. Then, they can be locked in place with a Lockout Padlock. The circular units are designed to fit over most of the universal type push / mushroom panel buttons and the square units are designed for the switches with levers. For the switches with extended handles ? we have the special patented lockout solutions that freeze the movement of these switches to a still position when they need to be locked at a specific angle. Dimensions in mm

Inside Size: L x B (A) = 36 - Diameter

Base Size: L x B (B) = 50 x 50

Cover Size: L x B x H (C) = 47 x 45 x 45

No. of Padlock Holes: 1
